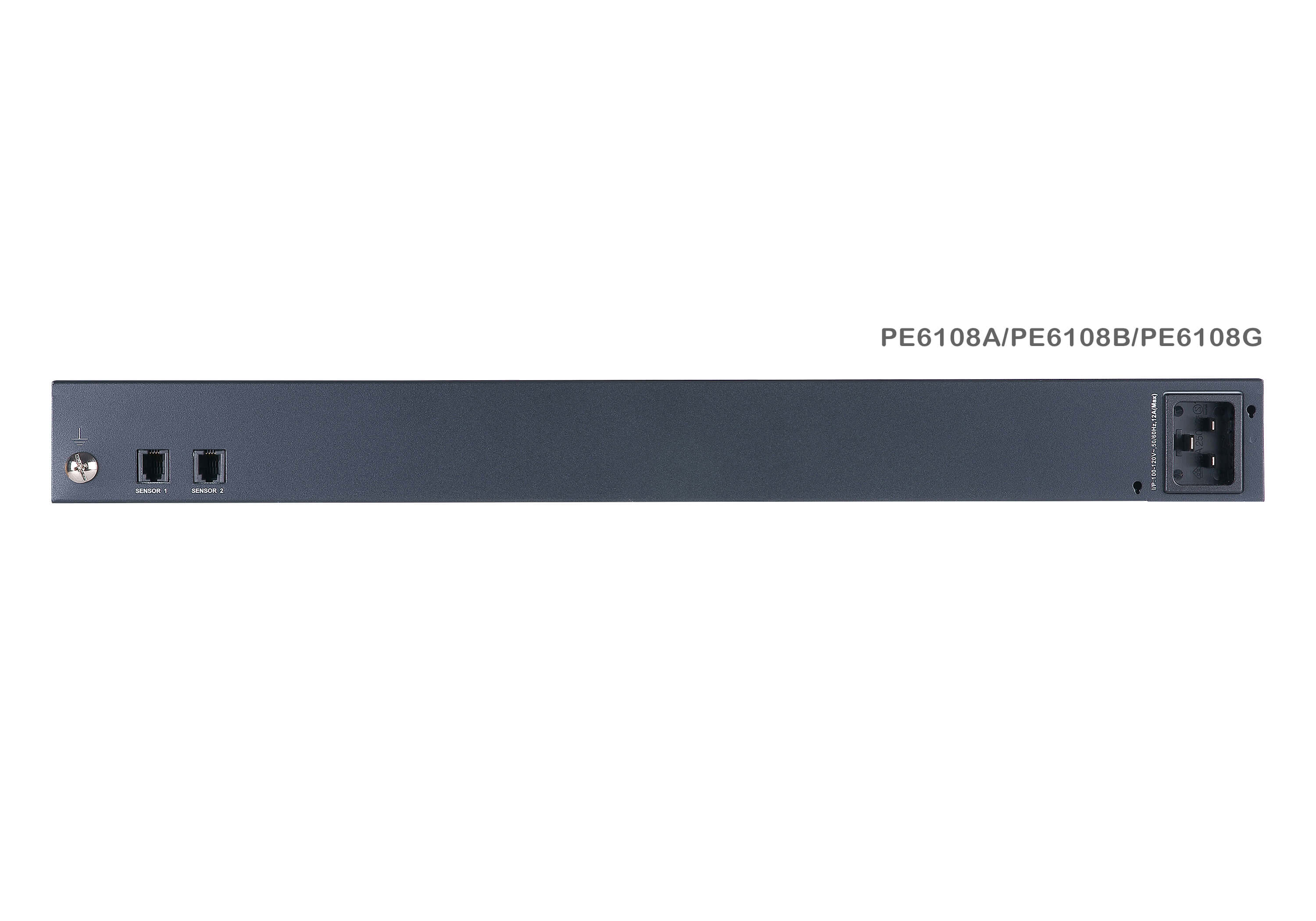

The ATEN PE6108G 8-Outlet eco PDU Power Distribution Unit is an intelligent 1U rackmount PDU designed for secure, centralised power control and monitoring of data centre and rack-based IT equipment such as servers, storage systems, KVM switches, and network devices. Featuring 8 × IEC C13 outlets, it provides remote outlet switching (On / Off / Power Cycle) over TCP/IP, plus real-time power measurement (bank-level metering) via a browser-based UI or ATEN eco DC energy management software for efficient power management across single or multiple racks.

Key Features

• 8 Individually Controllable Outlets: Remotely switch each outlet On / Off / Power Cycle for fast device reboot and power control.
• 1U Space-Saving Rack Design: Rackmount form factor designed for efficient deployment in cabinets and racks.
• Remote Power Management over IP: Control and monitor the PDU via TCP/IP using a built-in 10/100 Ethernet connection and browser-based interface.
• Bank-Level Power Metering: Monitor real-time current, voltage, VA, PF, and kWh at the PDU level for visibility and efficiency.
• Power-On Sequencing: Configure outlet start-up order and delay times to reduce inrush current and ensure stable equipment boot-up.
• Proactive Overload Protection (POP): Automatically powers off outlets during overload conditions to protect connected equipment.
• eco DC + SNMP v3 Support: Works with ATEN eco DC software and supports third-party SNMP Manager (v3) for scalable management.
• Environmental Monitoring Ready: Includes 2 sensor ports for optional rack environment sensors (e.g., temperature / humidity) to support health monitoring.
• Enterprise Security & Authentication: Supports two-level password security and remote authentication via RADIUS, with SSL encryption support.

What’s Included

• (1) ATEN PE6108G 8-Outlet eco PDU Power Distribution Unit
• (1) Power Cord (3 m)
• (1) User Instructions

Specifications

PE6108G 8-Outlet eco PDU
Outlet Quantity / Type	8 × IEC 60320 C13
Nominal Input Voltage	100 – 240 VAC
Maximum Input Current	10A Max
Input Connection	IEC 60320 C14
Input Power	2300 VA (Max)
Metering	Bank-level current, voltage, VA, PF, and kWh monitoring
Environment Sensor Ports	2
Dimensions (L × W × H)	43.24 × 22.04 × 4.40 cm
Weight	2.77 kg
Power Cord Length	3 m
Operating / Storage Temperature	0 – 50°C / -20 – 60°C
Humidity	0 – 80% RH, Non-condensing

*Values and capabilities vary across eco PDU series; the above reflects PE6108G specifications and series features. :contentReference[oaicite:10]{index=10}

Application Examples

Data Centres & Server Rooms	Remotely control and monitor rack equipment power, reduce downtime, and improve power visibility.
Network Closets & Edge Racks	Power-cycle routers, switches, and servers remotely while tracking power usage at the rack level.
Colocation / Remote Sites	Provide secure remote outlet control and metering to minimise on-site intervention.
Energy Monitoring & Optimisation	Use eco DC reporting and real-time metering to track consumption and allocate power resources more efficiently.

The ATEN PE6108G 8-Outlet eco PDU delivers reliable remote outlet control with real-time power monitoring in a rack-ready 1U design, ideal for IT teams that need secure, scalable power management and better visibility across modern rack deployments.
